型号命名Model name:

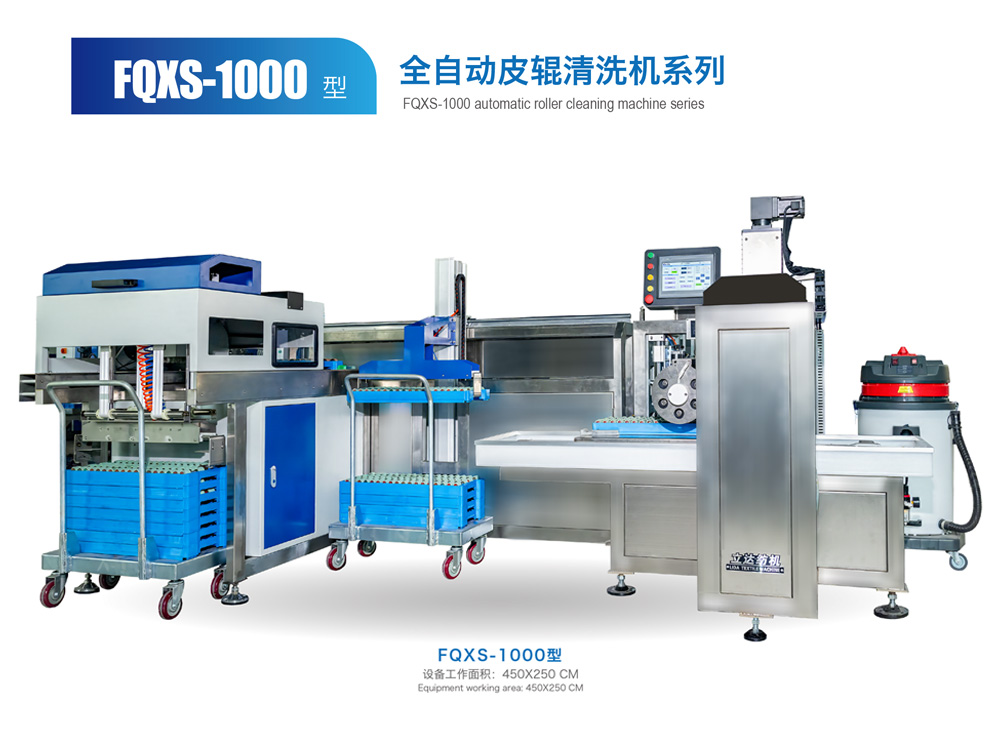

FQXS-1000 型 预清刷自动装换盘+全自动清洗功能
FQXS-1000 pre-cleaning automatic loading and
changing disc + automatic cleaning function

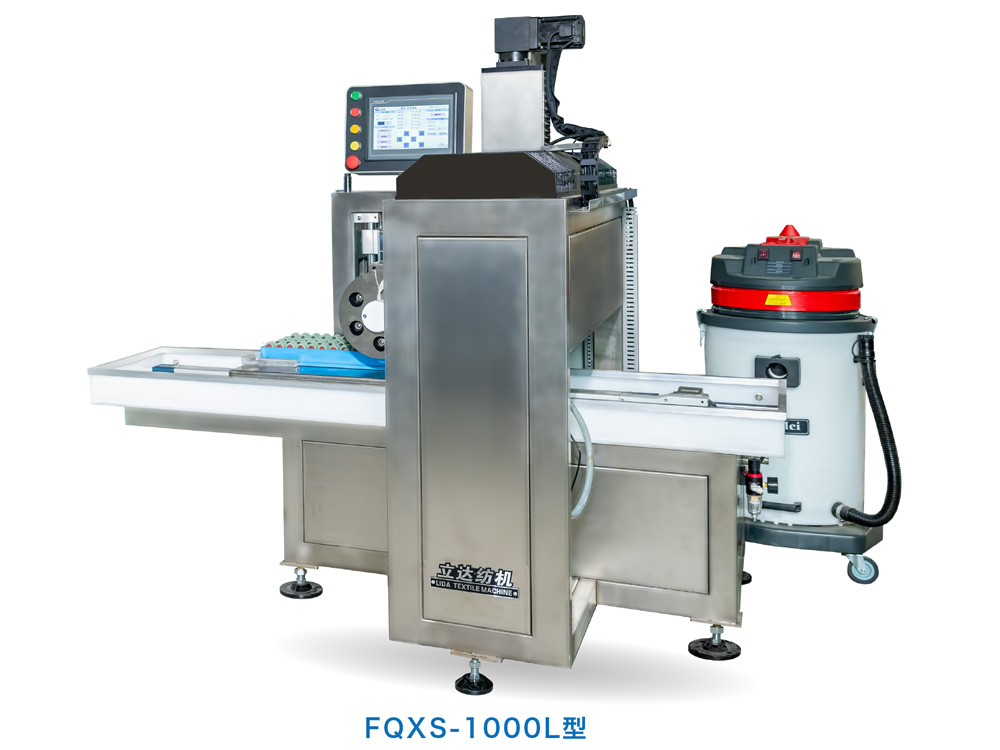

FQXS-1000H型 全自动清洗功能+保留后续升级预清刷自动装换盘模块
FQXS-1000H type automatic cleaning function + retain
the subsequent upgrade pre-cleaning automatic loading
and changing disk module
FQXS-1000L型 全自动清洗功能+不保留后续升级预清刷自动装换盘模块
FQXS-1000L automatic cleaning function + Does not
retain the pre-cleaning automatic loading and changing
disk module for subsequent upgrades
功能及特点 Function and characteristics
装盘皮辊的全自动化完成上料-预清刷-清洗-水洗-吸干-下料全流程全自动化。
预清刷采用长毛滚刷+吸尘（上吸下吹）配置有滤网袋集尘和纤维。
采用海棉平抛盘对盘内皮辊抛刷，并配置有清洗液桶进行清洗和脱水。
采用毛巾辊对抛刷后留有的残液清抛，并配置有清水喷嘴和吸水机保持毛巾辊在清洁状态。
六组吸水滚对经过毛巾辊清洗后残液在皮辊表面的水渍吸干，
并配置有加热系统，保持吸水滚良好的吸水效能。
全自动化的小车盘位抓取和放置，最大限度地减少人力资源和劳动强度。
The full automation of the roller loading - pre-cleaning - cleaning - washing -
drying - unloading process is fully automated.
Pre-cleaning with long hair roller brush + suction (up suction down blowing)
equipped with a filter bag to collect dust and fiber.
A sponge flat tray is used to brush the roller inside the tray, and a cleaning
liquid bucket is provided for cleaning and dewatering.
The towel roller is used to clean the residual liquid left after brushing,
and the water nozzle and water suction machine are equipped
to keep the towel roller in a clean state.
The six groups of water absorbing roller can absorb the water stains on
the surface of the roller after the towel roller is cleaned,
and the heating system is equipped to maintain the good water
absorbing efficiency of the water absorbing roller.
Fully automated car position grabbing and placement,
minimizing human resources and labor intensity
技术参数及规格 Technial Parameters
电源 power supply 380V+N+PE(三相五线制) Three-phase Five-wire System
预清刷毛刷辊 Pre-cleaning brush roller 直径180X300 动力60W 100-400rpa/min(可调)
Diameter 180X300 Power 60W 100-400rpa/min(adjustable)
清洗液水容量 Cleaning liquid water capacity 25L
毛巾辊清水喷雾水用量 Towel roller spray water consumption 30L/小时
控制方式 Control mode 人机触摸界面(带远程诊断)
man-machine touch interface (with remote diagnosis)
整机功率 Total power 4000W(FQXS-1000型) 4000W(FQXS-1000 Model)
清洗平刷盘动力 Power of cleaning flat brush plate
1.5KW2800转(可调) 1.5KW2800 RPM (adjustable)
清水毛巾辊 Towel roll 280rpa/min 直径60X350 280rpa/min diameter 60X350
吸水辊 Suction roller 六组围转加热烘干 6 groups of circular heating drying
产量 Output 20盘/小时 20 discs/H
小车式整盘上下料 Trolley type full plate loading and unloading
15盘+15盘(1080锭)仅适用细纱专用盘(粗纱或紧密纺盘需人工上下料）
15 plates +15 plates (1080 ingot) is only suitable for spinning special
plates(Roving or tight spinning tray needs manual loading and unloading)
