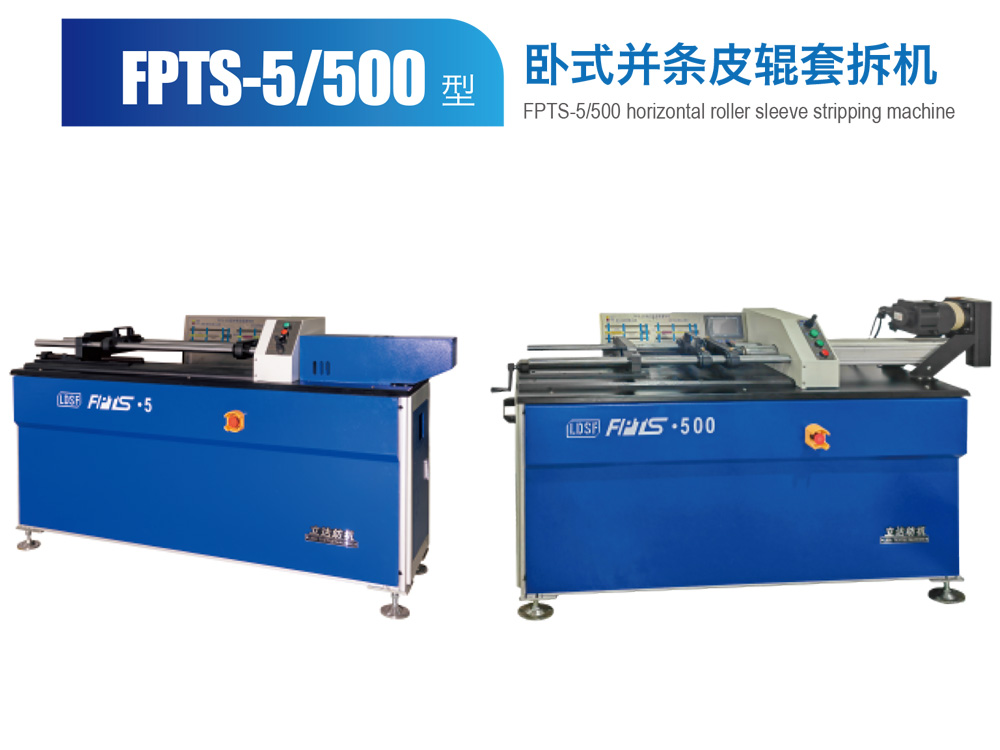

FPTS--5-500型卧式并条皮辊套拆机
功能及特点 Function and characteristics
FPTS-5是采用液压系统，FPTS-500采用伺服控制缸作为动力的主要部件，
动力输出平顺，滑动平台提高上下套拆模具的配合精度，改进
了套拆模具的定位方式，使调整更为方便，
FPTS-500还配置的压力传感器，直观地体现在套制过程中压力动态变化。
FPTS-5 adopts hydraulic system, FPS-500 adopts servo control cylinder
as the main component of power, smooth power output,
sliding platform improves the matching accuracy of the upper
and lower sleeve disassembly mold, improves the positioning
mode of the sleeve disassembly mold, and makes adjustment more
convenient, FPTS-500 is also equipped with pressure sensor,
which intuitively reflects the dynamic change of pressure
during the sleeve making process.
技术参数及规格 Technial Parameters
电源 power supply
FPTS-5型 380V+PE线
功率: 2200W
FPTS-500型 220V+PE线
功率: 2200W
最大压力 Maximum pressure 2800KG
套压行程设定 Stroke setting 0-500mm
加工并条长胶辊范围 Processing range
橡胶圈长度Length120-400mm
内孔Inner bore16-30mm
