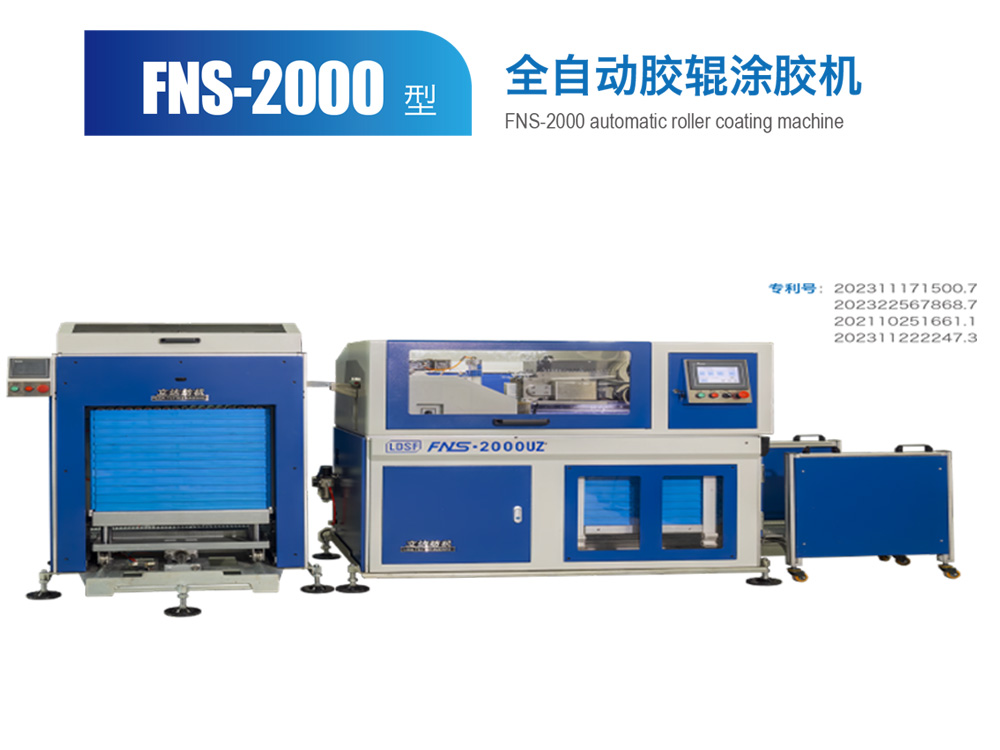

FNS--2000型全自动胶辊涂胶机
功能及特点 Function and characteristics
这是一台集成整盘上料模块、涂胶、光照装盘模块的全流程胶辊磨砺后的多功能胶辊处理系统。
从整盘待处理胶辊自动上料-涂胶-UV光照-装盘。涂胶光照装盘模块可根据用户要求减少功能以提高性价比。
涂胶部分在涂前配置了滚刷清洁（带1.1KW强吸负压风机排尘)，可控温的预加热装置，光照采用长寿命（10000以上小时LED365波段UV平行光源）
特别适用纺纱厂对胶辊磨后轻涂轻照的新工艺方案。
该设备为用户最大限度地减少流程工序的人力资源的减少和整合。
This is a multifunctional roller handling system that integrates
the whole plate feeding module, gluing module and light loading module.
From the whole plate to be processed roller automatic feeding - glue -UV light - plate loading.
The adhesive light mounting module can reduce the functions
according to user requirements to improve the cost performance.
The gluing part is equipped with rolling brush cleaning (with 1.1KW strong suction
negative pressure fan to exhaust dust), pre-heating device with controlled temperature,
lighting with long life (more than
10,000 hours LED365-band UV parallel light source).
It is especially suitable for the new process scheme of light coating and
light shining of rubber rolls after grinding in spinning mill. The equipment
minimizes the human resource reduction and integration of
the process processes for the user.
技术参数及规格 Technial Parameters
电源 power supply 220V+PE
整机功率 Total power 2500W
涂胶前经过预处理 Pre-treatment
清刷-预加热（可关闭或控温）brushing - pre-heating
涂胶方式 Gluing method 笔式涂抹或海绵涂抹 Pen style or sponge
补胶方案 Patch scheme
精准时控双位补液+自动回吸（无液流管路清选要求）
Time controlled fluid replenishment + suction
整盘上料模块功能 The whole plate feeding module function
十二盘满盘和十二空盘自动交换
Twelve full discs and twelve empty discs automatically swap
紫外线光照采用LED专用光源无臭氧和高温产生，UV光照时间
Ultraviolet light using LED special light source without
ozone and high temperature generation, UV light time
40S-180S
全自动装盘 Full automatic plate loading
十盘满盘和十空盘自动交换，配置专用进出位小车。
Ten full plate and ten empty plate automatic exchange,
equipped with a special entry and exit car.
