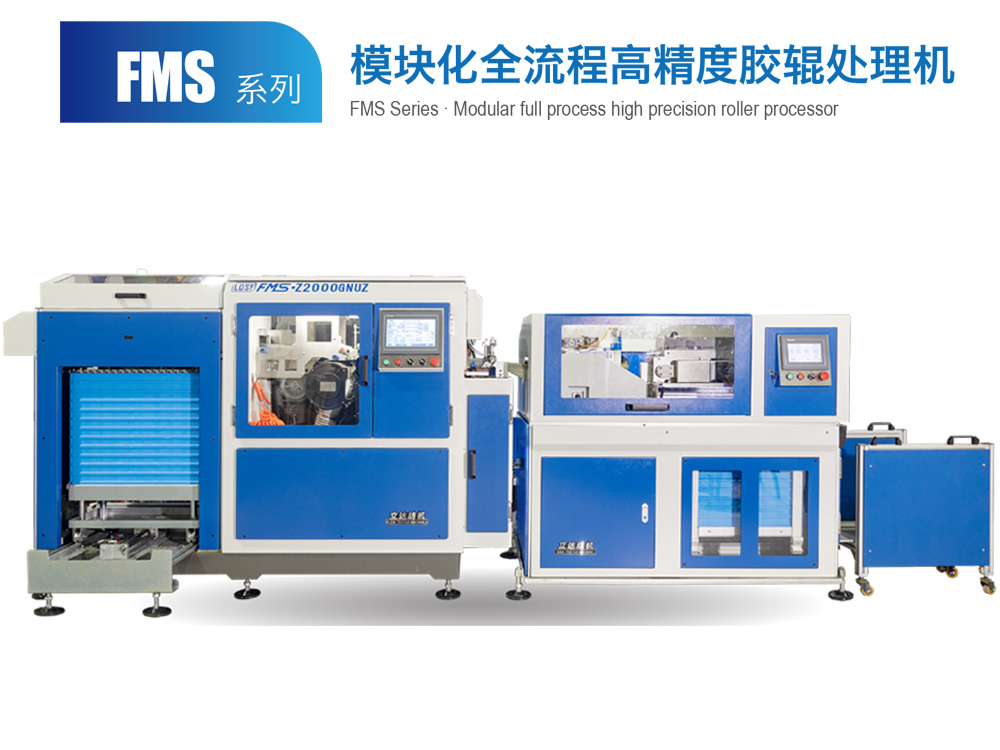

FMS系列-模块化全流程高精度胶辊处理机
功能及特点 Function and characteristics
这是一台集成整盘上料模块、磨砺模块、涂胶光照装盘模块的全流程功能性组合的多功能胶辊处理系统。
从整盘待处理胶辊自动上料-自动磨砺（带尺寸筛选）-补油（附带打标）-涂胶（附带加热）-UV光照-装盘。
涂胶光照装盘模块可根据用户要求减少功能以提高性
价比。
特别适用纺纱厂对胶辊磨后轻涂轻照的新工艺方案。该设备为用户最大限度地减少流程工序的人力资源的减少和整合。
This is a multi-functional roller handling system which integrates the whole process
function combination of the whole plate loading module, sharpening module and gluing light loading module.
Automatic feeding from the whole plate to be processed roller - automatic sharpening
(with size screening) - oil filling (with marking) - glue coating (with heating) -UV light - plate loading.
The adhesive light mounting module can reduce the functions according
to user requirements to improve the cost performance.
It is especially suitable for the new process scheme of light coating and light shining
of rubber rolls after grinding in spinning mill. The equipment minimizes the human
resource reduction and integration of the
process processes for the user.
技术参数及规格 Technial Parameters
电源 power supply 380V+PE
整机功率 Total power 6500W
整盘上料模块功能 Fill the whole plate
◎十二盘满盘和十二空盘 ◎盘位自动交换
◎拾档自动记忆位置 ◎待上料移出空间
◎ Twelve full disks and twelve empty disks
◎ Automatic exchange of disk positions
◎ Automatic memory position of picking up gear
◎ To be moved out of the space
磨砺模块功能 Sharpen module function
◎适应细纱、紧密纺胶辊的全自动磨砺
◎进入磨区前的适磨量检测，提高效率
◎砂轮自动修整，保持砂轮锋利
◎自动清洁砂轮系统，减少胶辊粘屑
◎Suitable for fine yarn and tight spinning roller
◎Detection of the amount of wear before grinding
◎Automatic dressing of grinding wheel
◎Automatic cleaning wheel system
砂轮 Grinding wheel ф200X200mm宽（W)
磨头转速Grinding speed 0-3200RPM
磨砺精度 Grinding precision Ra:0.02-0.04um
产量 Yield 300-340档files/H
涂胶光照装盘模块 Adhesive light mounting module
◎涂前预处理：清刷-预加热
◎选择笔涂或海棉涂刷
◎采用LEDUV专用光源
◎十盘满盘和十空盘交换
◎ Pretreatment before coating: brushing - pre-heating
◎ Select pen paint or sponge brush
◎ Use LEDUV special light source
◎ Ten full plate and ten empty plate exchange
往复涂刷次数 Number of repetitions 1-3次（time）
Uv光照时间 Illumination time 40S-180S
