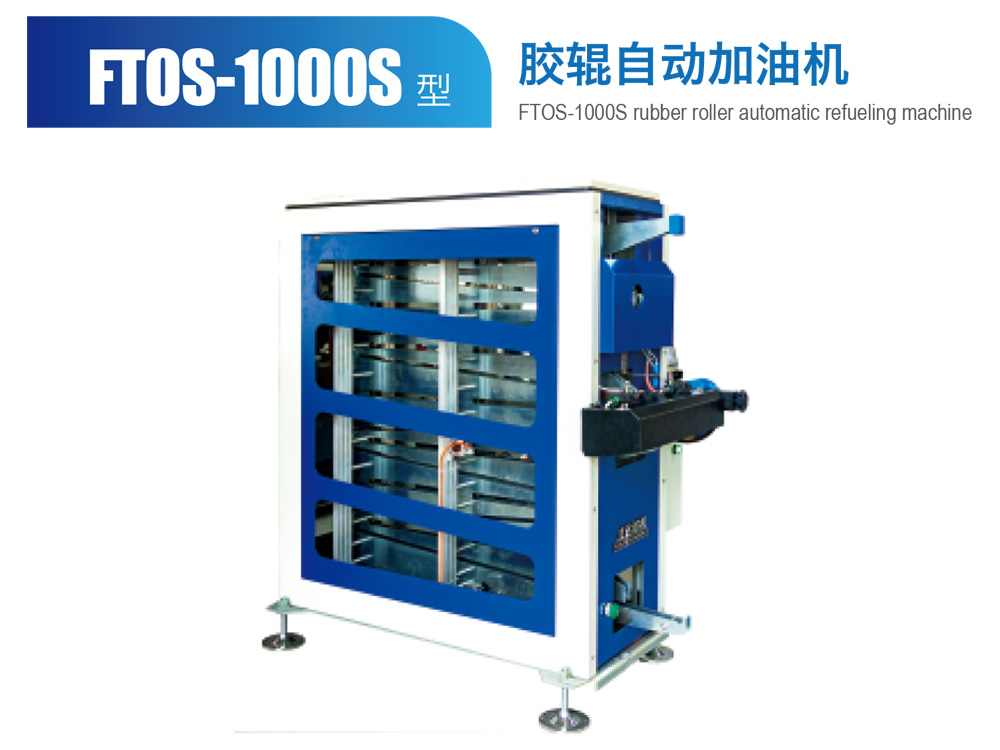

FTOS--1000S胶辊自动加油机
功能及特点 Function and characteristics
这是一台全自动操作的双头注油，减少劳动强度，提高
工效，气动柱塞泵供油确保总油储备量充分，精准的阀端控
制和分配对双头同步皮辊注油，配置的进出S滚道自动储存
加工前后皮辊。
This is a fully automatic operation of double-head oiling,
reduce labor intensity, improve efficiency,
pneumatic piston pump oil supply to ensure
that the total oil reserve is sufficient,
accurate valve end control and distribution of
double-head synchronous roller oiling, the
configuration of the entry and exit of
the S-raceway automatic storage before and after
processing of the roller.
技术参数及规格Technial Parameters
电源 power supply 380V+PE
整机功率 Total power 800W
一次注油量 Oil injection volume at one time 0-10ml
加工范围 Processing range
内档长度Inner gear length30-60mm
直径： ф24-45mm
S道储存数 Number of S-channels stored 220+220档
压缩空气压力 Compressed air pressure 0.6to0.7Mpa
