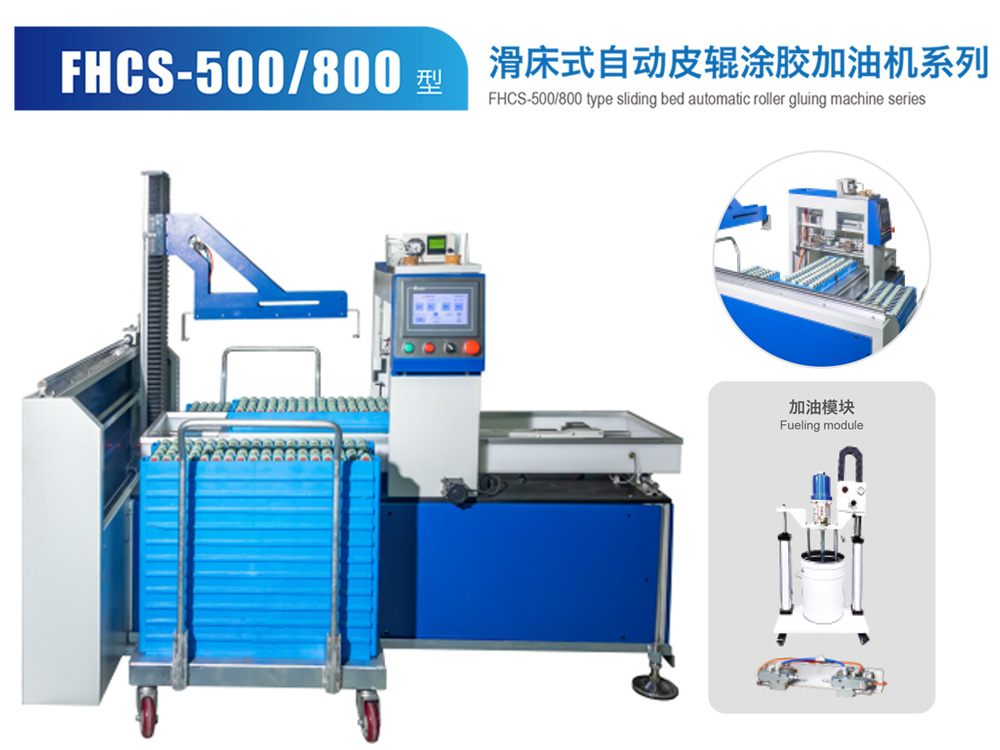

型号命名 Model name
FHCS-500 型 自动装换盘加油功能
FHCS-500 automatic refueling function
FHCS-800 型 自动装换盘涂胶功能
FHCS-800 automatic loading and changing plate coating function
FHCS-800H 型 自动装换盘涂胶功能+加油功能模块
FHCS-800H automatic loading and changing plate gluing
function + refueling function module
功能及特点 Function and characteristics
滑床式全自动涂胶加油机集成了全自动化完成上料-自动化涂胶功能-
更换模块自动加油-下料全流程全自动化。
最大限度的减少人工从盘中取出皮辊经加工后回放盘中的劳力资源。
二功能合一的配置方案为用户减少设备投资，配置的盘位小车可
适应从加工-储存-运送全流程应用，最大限度地减少人力资源和劳动强度。
The sliding bed automatic gluing and refueling machine integrates
full automation to complete the feeding - automatic gluing function -
automatic refueling of the replacement module - the whole process
is fully automated. Minimize the manual removal of the roller from
the plate after processing and playback of the disk labor resources.
The two-in-one configuration scheme reduces equipment investment
for users, and the configuration of the positioning car can be adapted
to the whole process application from processing - storage - transportation,
minimizing human resources and labor intensity.
技术参数及规格 Technial Parameters
电源 power supply 220V+PE(单相三线制) single-phase three-wire system
整机功率 Total power 400W
涂刷方式 Painting method 笔式 pen type
胶液补充方式 Glue filling method 定量自动（可设置）
automatic quantitative (can be set)
涂胶胶液容量 Adhesive liquid capacity ≤70ml
适用处理皮辊 Uitable for handling roller 粗细纱、紧密纺皮辊
Thick and fine yarn, tight spinning roller
加油量控制 Refueling control 精密定量阀 Precision metering valve
每次加油量 Fuel per refueling 0.1-1.5CC(可设多次加注）
0.1-1.5CC(multiple filling possible)
供油系统 Oil supply system 双立柱压盘泵（商品油桶）
Double column platen pump
涂胶产量 Coating yield 600档/小时 600 gears/hour
加油产量 Bunkering rate 700档/小时 700 gears/hour
控制方式 Control mode 人机触摸界面
Man-machine touch interface
小车式整盘上下料 Trolley type full plate loading and unloading
15盘+15盘(1080锭)仅适用细纱专用盘
15 plates +15 plates (1080 spindles) are only suitable for spinning special plates
