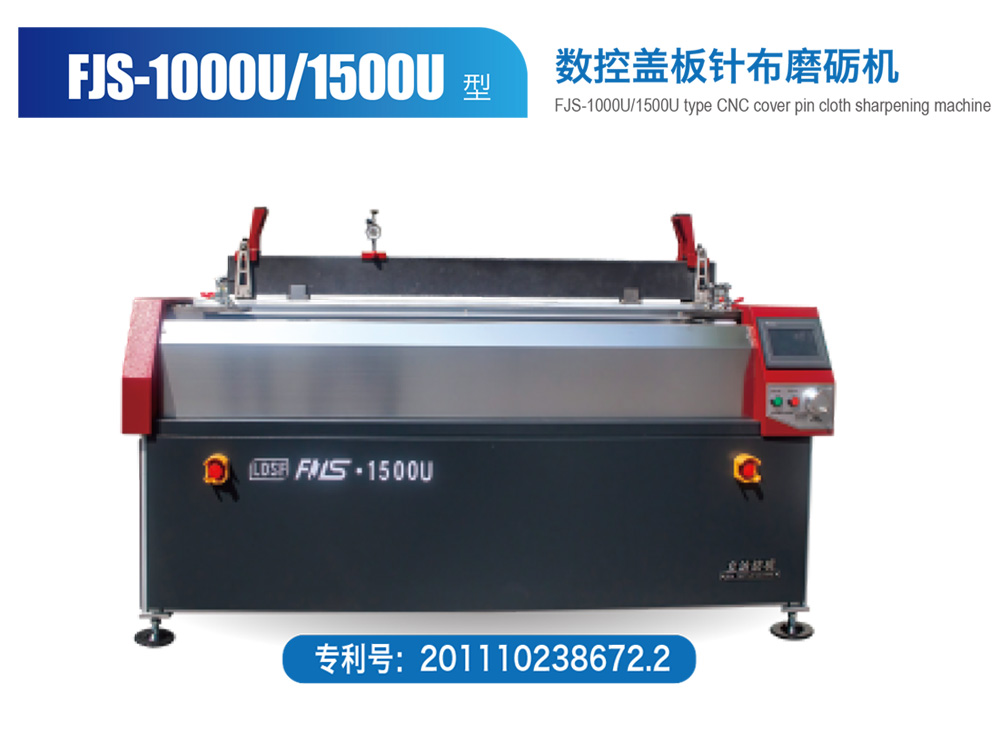

FJS--1000U-1500U-型数控盖板针布磨砺机
功能及特点 Function and characteristics
采用二组高精度导轨的数控运行磨砺系统小车，确保运行平稳和精准的直线度。
配置无损耗的特殊碗形砂轮和油石头，使得磨砺效果突出，针尖无明显毛剌。
修整更换盖板针布后由于龙骨、针布、包覆的整付平整度差异，
满足用户管理标准或工艺要求，达到整台付平整差异最小化。
特殊磨料的平面砂轮对修整平整度的效能非常高。
盖板针布使用寿命在80%内，应用配置的油石系统来改善已磨损的针布针尖锋利度，延长盖板针布分梳性能。
Two sets of high-precision guide rails are adopted to ensure smooth running and accurate straightness.
Special bowl-shaped grinding wheel and oil stone are equipped with no loss, so that the sharpening
effect is prominent and the needle tip has no obvious hairiness.
After dressing and replacing the cover sheet, due to the difference of the whole flatness of the keel,
the needle cloth and the covering, it can meet the user's management standards or process requirements and
achieve the minimum of the whole table payment difference. Surface grinding wheels with special
abrasives are very efficient at trimming flatness.
When the service life of the cover cloth is less than 80%, the configured oil stone system is applied to
improve the sharpness of the worn needle cloth and extend the combing performance of the cover cloth.
技术参数及规格 Technial Parameters
电 源 power supply 220V+PE
整机功率 Total power 1150W
FJS-1000U型加工盖板针布长度 Card clothing length of processing cover 1020mm
FJS-1500U型加工盖板针布长度 Card clothing length of processing cover 1020-1500mm
磨头转速 Grinding speed 2500-6000RPM
磨头移动速度 Processing moving speed 700-3000mm/min
油石珩磨 Whetstone Honing 300次往复 reciprocations 动程Movement：3mm
